Telemetry Ground Systems and Products

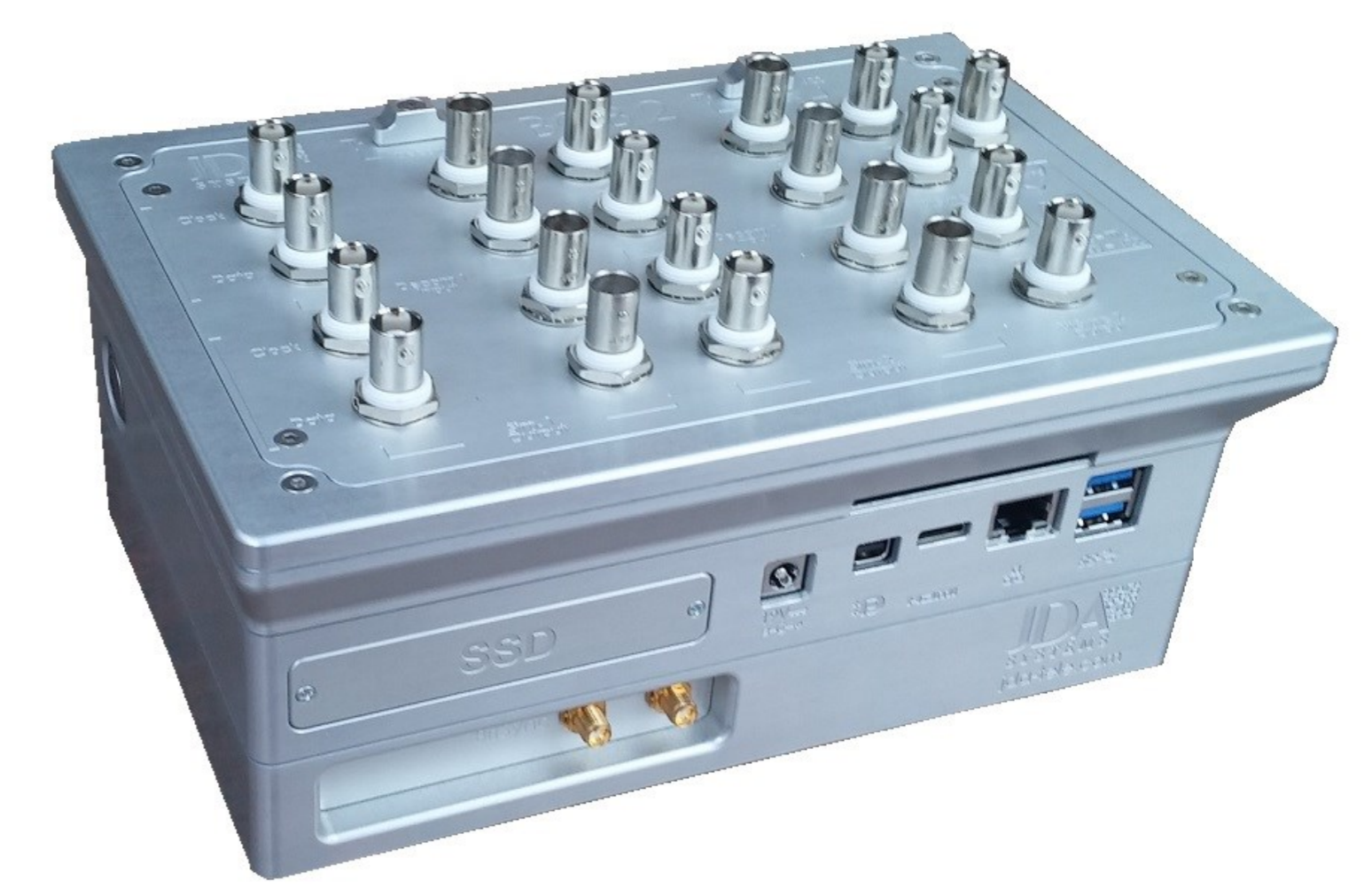

BOB2 Telemetry Systems


BOB2 Telemetry System.PNG

  • Full Telemetry Ground Station Functionality From Receiver O/P to Post Processing

  • 2 CHannel or 4 Channel Configurations

  • IRIG CH10 Recorder with Playback

  • Channel Independent Bit Sync & Decoms For High Speed Operation

  • Supports the IRIG Standards Including Chapters 4, 8, 7, 9 & 10 and selected TMnS systems

  • Real Time and Playback Data Regeneration and Network Broadcast Capability

  • Low Power Operation with Low Heat Generation For Operation In Tight Spaces

  • Integrated with VuSOFT Telemetry software for acquisition, stream processing, Display & Analysis; 3rd party software support available for selected vendors.

  • Fitted With a Professional Grade Intel Processor and Removable SSD

  • Customizable To Support Customer Unique Applications

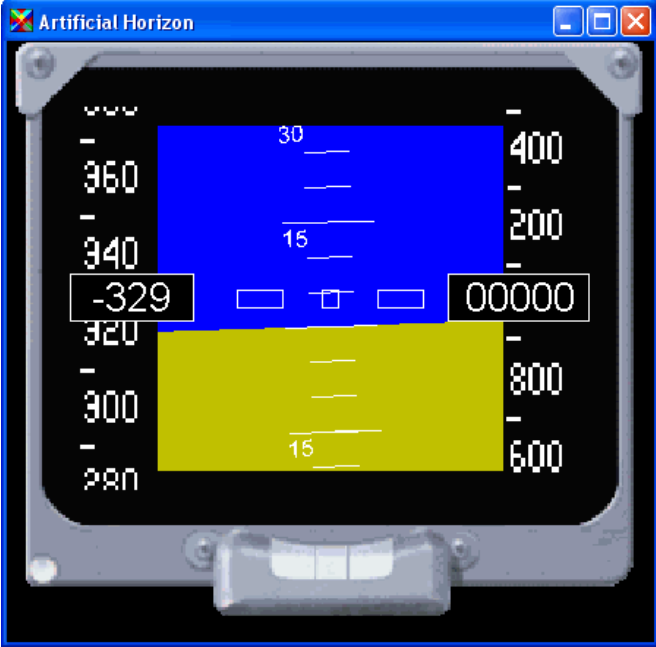

Aritificial Horizon.PNG
Data Recorder Control.PNG

VuSoft Telemetry Software

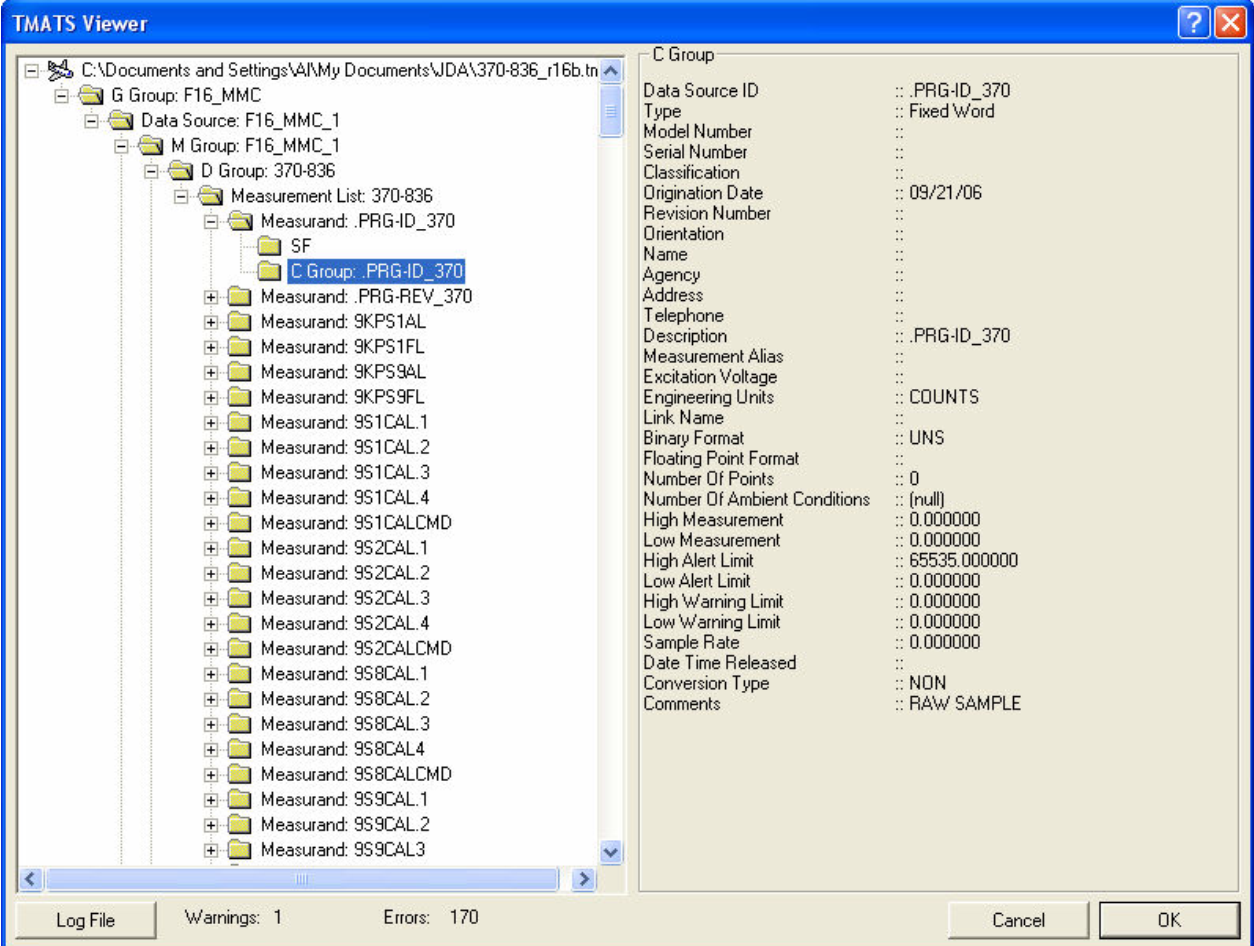

TMATS Viewer.PNG
Databus - Arinc.PNG

VuSoft FEATURES

  • Format and Data Decoding of Multiple Streams in Multiple Formats

  • Project Ingest via TMATS, MDL, EXCEL, Custom Database

  • Records Raw and Processed Data

  • Record in IRIG-106 Chapter 10 Format

  • Client/Server

  • Time Alignment of All Data Streams and Displays

  • Over 50 Display Types

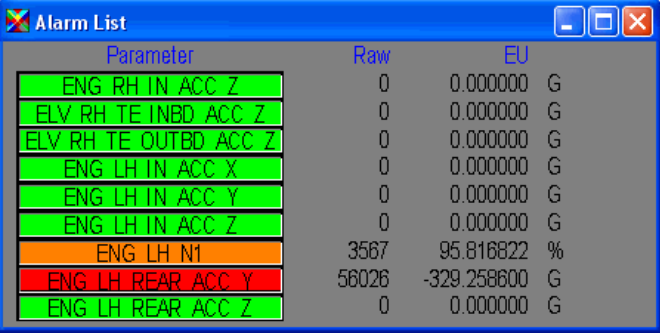

    • Tabular, Alarms, Bar Graphs

    • FFT’s, Line Graphs, Strip Charts

    • XY Plots, Digital Filters, Discretes

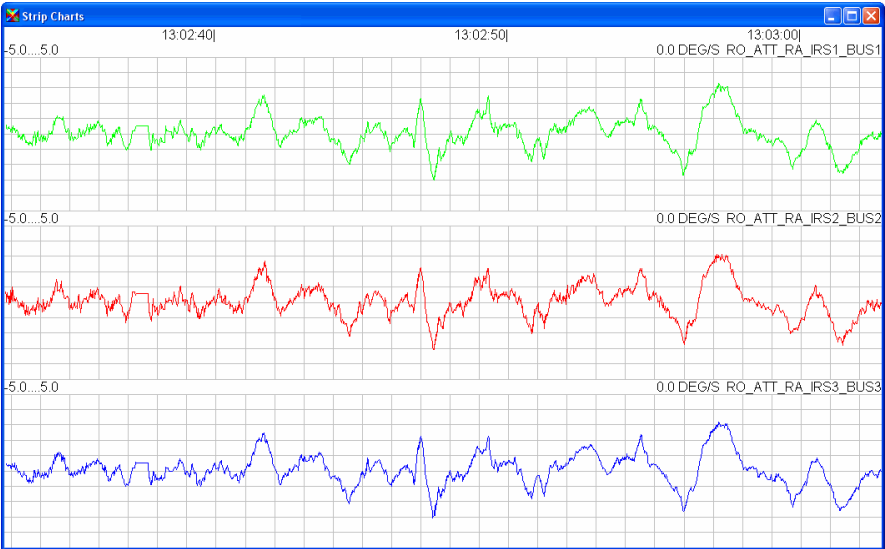

StripCHart Graph.PNG

Data Decoders

  • IRIG106 Chapter 4, 8

    Embedded PCM & Asynchronous Streams

  • Embedded Serial Streams & Audio

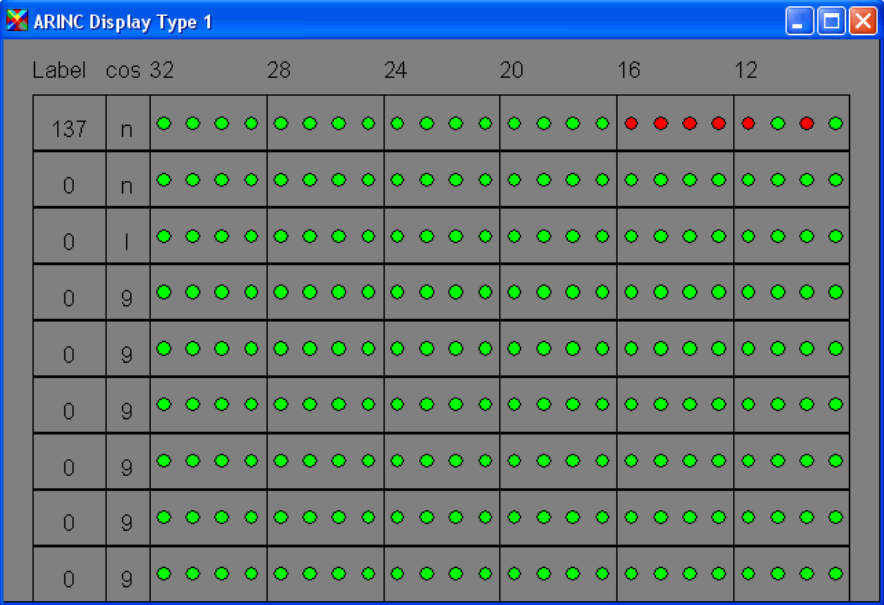

  • Mil-Std-1553, ARINC429, AFDX, CAN Bus

  • NEMA GPS

  • Heim DCM, Merger & 1553

Optional Data Analysis & Reporting

  • Multiple parameter display with overlaid or stacked, time aligned traces

  • FFT and digital filtering

  • Applied Free-Form Math Functions

  • Comprehensive Data Export

  • Plot channel vs. time (Yt plot)

  • Channel vs. Channel (X-Y plot)

  • Direct Cursor Access to EU Converted DataValues

  • Automatically Display Data with Highest Possible Resolution

  • Display Min/Max Values Between Decimation Points

  • Digitally Filter Data (High/Low/Band Pass)

  • Text Insertions with Data Values, Time & UserText

  • Data Zoom to Individual Sample Level

  • Math Engine for Derived Parameters

  • Encrypted Network Data Distribution

  • Change Parameter Definitions “On-The-Fly”

  • Client Software with Full Display, Math and Recording Capabilities

  • Post-Processing and Report Generation

  • External and Embedded Time Formats:

    • IRIG

    • A, B & G, GPS

    • MDBM, MABM, MTCG, Aydin IRIG A & B

    • FMV, TTC/CW, Veda

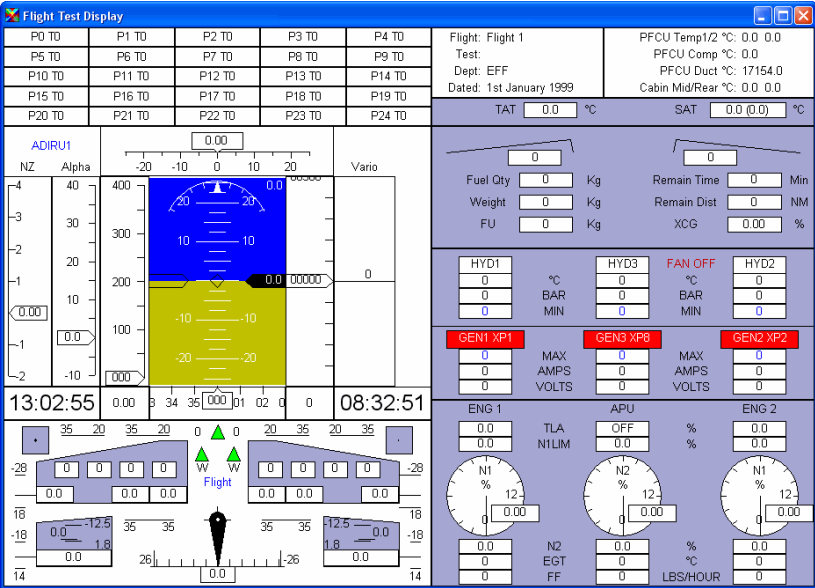

Flight test Display.PNG

Format Decoders

  • IRIG106 Chapter 10

  • Heim DATaRec 2

  • Heim DATaRec 3

  • Disk Image Reader

  • CCSDS, COMET, C83

  • UART (Serial Streams)

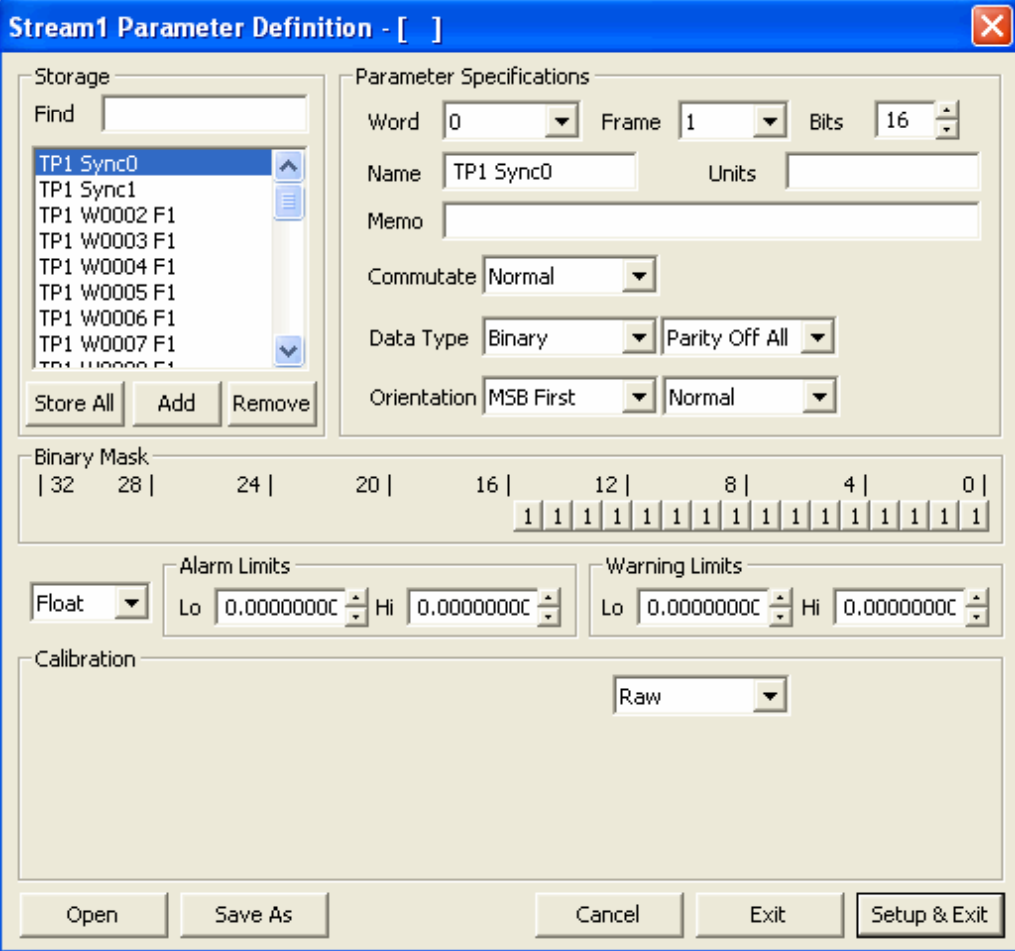

Project Setup - Param Def.PNG

Integrated Ground Systems

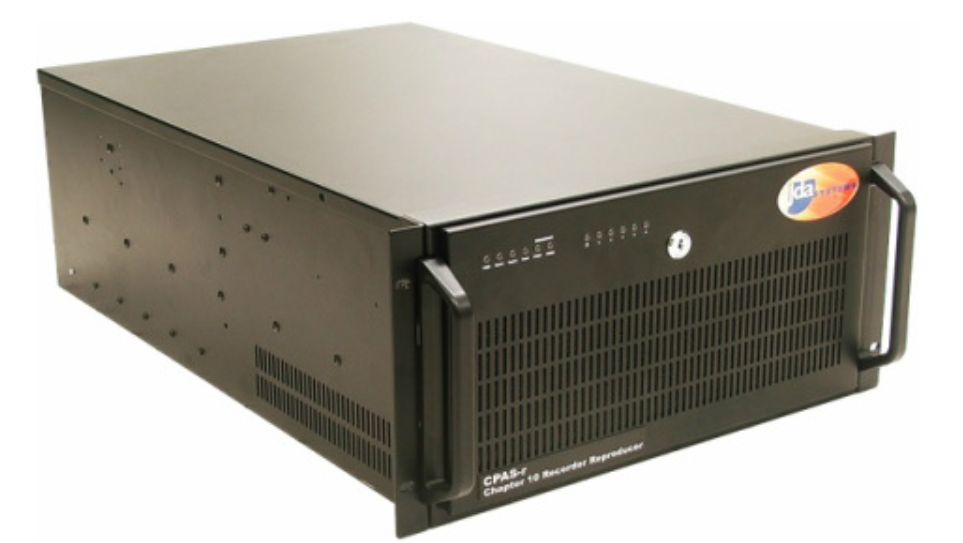

Permastor CH10 Recorder and Reproducer

Permastor CH10 Recorder and Reproducer

Control Room 3.jpg
VuSoft page4.jpg

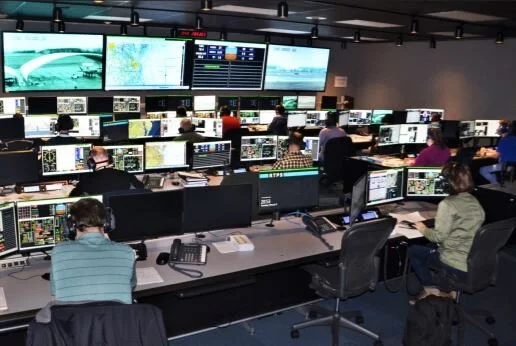

Control Room 2.JPG
TDS-1000 Rack mounted Telemetry Data System

TDS-1000 Rack mounted Telemetry Data System

The JDA Systems TDS-1000 CPAS is the foundation of any telemetry ground station requiring a front end server and upto 100s of clients locally or remotely.

The TDAS-1000 is a 19 inch rack mount unit that can be integrated with complete telemetry ground station components as required. The CPAS leverages the capabilities off many JDA Systems components such as, the RF antennas controllers (externally), receivers, bit syncs, decoms and the VuSoft™ software program for both the server control stations as well as remote clients.

The CPAS can receive multiple channels of L, Upper L, S and NATO bands RF, dual channel PCM telemetry in accordance with IRIG-106 Chapter 4, Chapter 7, 10/11 and TmNS packet formats.

The recovered data may displayed, processed distributed, export, analyzed and recorded onto a removable storage device in IRIG-106 Chapter 10 compliant files.

Board Level Products - To Be Added
