Telemetry Receiver Systems
VT-RX-SC2U-1U Receiver
The VT-RX-SC2U-1U compact receiving system combines between one and four high performance RF multiple band receivers, a post detect diversity combiner, optional digital bit sync in a single 1U height 19 inch rack mountable chassis. Optional front panel display/keypad and remote control.
SNR Polling Systems (Multi-Targets Range Acquisition)
The SNRP-8-12-LSC represents a new way of recovering telemetry signals from multiple test objects on a test range. The unit can take up to 8 antenna inputs and provide the best signals from these to any mix of 12 receiver compatible outputs, all in a single 19 inch rack mountable chassis.

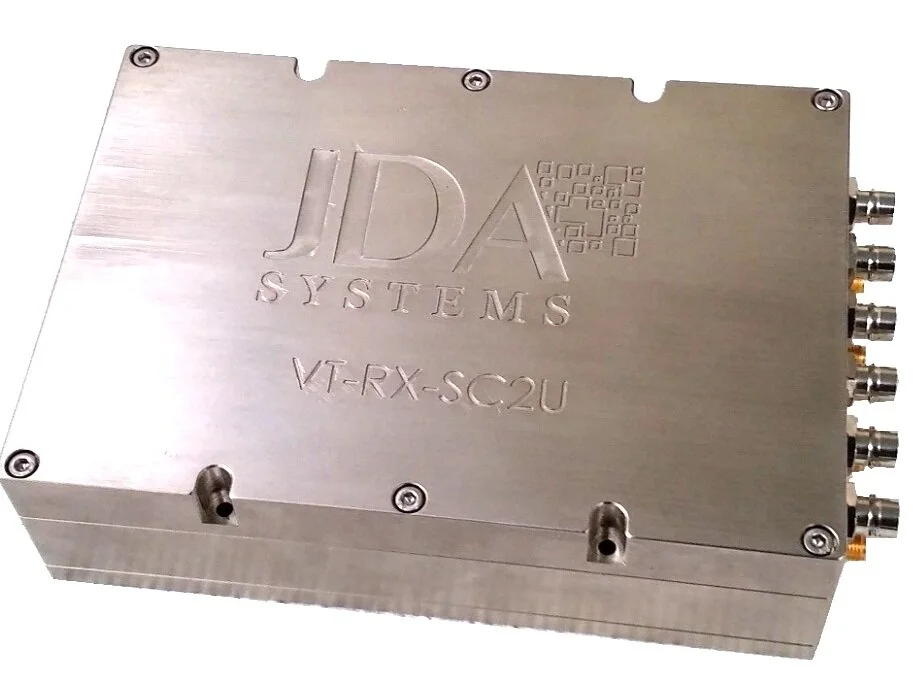

VT-RX-SC2U All Band Rugged Receiver
The VT-RX-SC4U receiver system has a very wide bandwidth of more than 30 MHz per channel over the range 70MHz to 6GHz and an ultra low total noise figure of better than 4db.
Fully digital direct conversion, the VT-RX-SC4U receiver provides quad channel trellis based bit synchronization functionality for TIER0, TIER1 and optionally TIER2 reception with improved data reception performance over traditional reception systems of anywhere from 8db to 12db. The pre- detect combiner, post-detect best source selector and integrated equalizer ensures exceptional reception performance
Uniquely the VT-RX-SC4U digital receiver can also supply analog data reception outputs suitable for legacy operation, such as analog Video reception, and improved performance AM down to below –125 dBm for use with Auto Tracking antenna systems.
VT-RC-74D Dual or Quad Rack Mount Receiver (4U)
The VT-RC-74DE is a compact receiving system combines two (or optionally up to four) high performance RF multiple band digital receivers, a post detect diversity combiner, digital bit sync and optional frequency analyzer with full oscilloscope and EYE pattern display in a single 4U height 19 inch rack mountable chassis

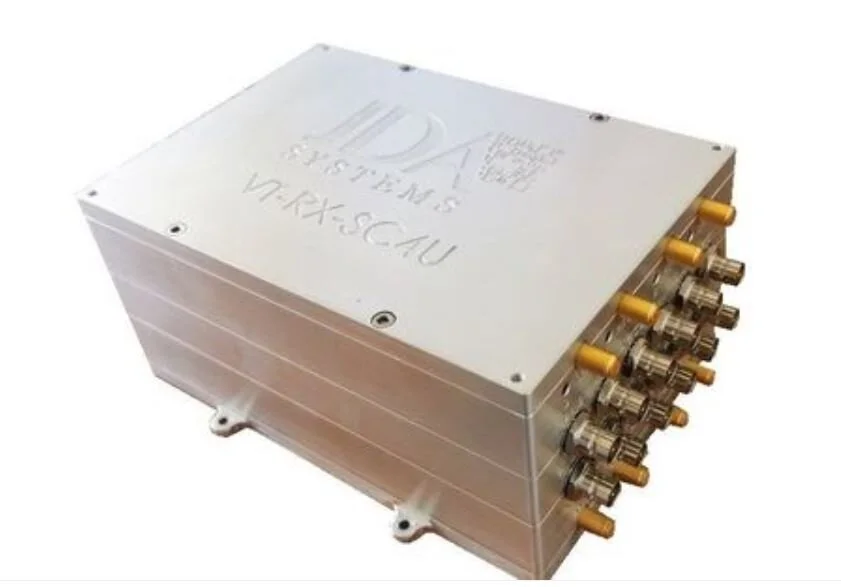

VT-RX-SC4U Receiver system
The VT-RX-SC4U receiver system has a very wide bandwidth of more than 30 MHz per channel over the range 70MHz to 6GHz and an ultra low total noise figure of better than 4db.
Fully digital direct conversion, the VT-RX-SC4U receiver provides quad channel trellis based bit synchronization functionality for TIER0, TIER1 and optionally TIER2 reception with improved data reception performance over traditional reception systems of anywhere from 8db to 12db. The pre- detect combiner, post-detect best source selector and integrated equalizer ensures exceptional reception performance
Uniquely the VT-RX-SC4U digital receiver can also supply analog data reception outputs suitable for legacy operation, such as analog Video reception, and improved performance AM down to below –125 dBm for use with Auto Tracking antenna systems.
VT-TR-SCSC Dual Channel Tracking Receiver
The VT-TR-SC2C is a dual channel all band (70MHz to 6GHz) tracking receivers. Each receiver may be tuned to its own frequency thus offering a solution for both frequency and polarization diversity tracking. All this in a small form factor, low heat dissipation and ruggedized package.
The VT-TR-SC2C is a digital direct conversion receiver that provides exceptional reception performance over TIER-0 (PCM), TIER-1 (SOQPSK) and TIER-2 (Mult-h) received telemetry signals with improved performance AM down to below –125 dBm for use with Auto Tracking antenna systems
The VT-TR-SC2C receiver system has a very wide bandwidth of more than 30 MHz per channel over the range 70MHz to 6GHz and an ultra low total noise figure of better than 4db.
The VT-TR-SC2C can operate stand alone or tethered. Remote control and monitoring is supplied as standard, either via the human remote interface (Ethernet based TCP/IP) or via the supplied Windows compatible control software operating locally or remotely for single or multiple units. This full function graphical software interface controls and monitors all aspects of the VT-TR-SC2C tracking receiver systems operation.
